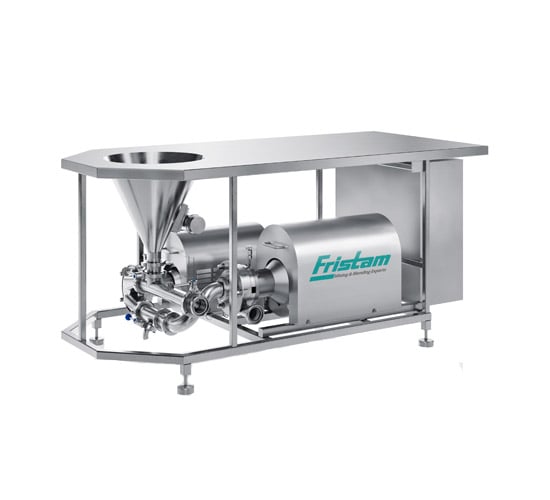

Fristam PM – Powder Mixer
Bespoke Powder Mixing units – Rapid induction of powder into liquid to create a fully homogenous blend.
What is the Fristam PM Powder Mixer?
A Fristam PM Mixer is a universal hygienic mixing and blending system designed for controlled blending, dissolving, re-circulating and homogenizing ingredients to create consistent product quality and structure.
The Fristam PM mixer operates using a precision rotor–stator mixing principle, ensuring rapid ingredient incorporation and uniform distribution. This delivers reliable homogeneity, stable flow behavior and repeatable process results across a wide range of hygienic applications.
Engineered for food, beverage, and pharmaceutical production, the PM mixer is fully CIP-capable and integrates easily into closed processing systems. Its compact, robust design supports efficient cleaning, reduced downtime, and dependable operation in demanding hygienic environments.
Suitable for applications ranging from simple blending and rework to ingredient dissolution and product circulation, the Fristam PM provides manufacturers with a flexible, process-reliable solution for modern hygienic mixing requirements.
3D view above – Move with mouse | AR view with QR code
How The Fristam Powder Mixer works:
- Powder is tipped into a hopper, which is mounted onto a waist height skid.
- A Fristam Self Priming Liquid Ring Pump pulls liquid into the system, while powder is drawn from the hopper into the liquid stream directly below. This creates a pre-mixture of powdered ingredients and liquid, which is immediately transferred towards the Fristam Shear Blender.
- The Fristam Shear Blender uses a rotor-stator system with very tight shearing clearances to efficiently blend, emulsify, disperse, dissolve multiphase products, and to reduce particle and droplet sizes. The result is a fully homogeneous mix of powder and liquid.
- The system can be used in batch production or in inline processes.
- For cleaning, the unit can be fully integrated in CIP and SIP cycles.
Typical Applications:
The PM Powder Mixer provides consistent, hygienic powder induction and dispersion across food and beverage, dairy, pharmaceutical, cosmetic, chemical, and biotechnology applications. It enables fast mixing of powders into liquids, minimizing agglomeration and ensuring uniform, repeatable product quality.
-
Food & Beverage
Efficient dispersion of sugars, stabilizers, proteins, cocoa, and functional powders into sauces, beverages, and liquid bases.
-
Dairy
Controlled addition of milk powders, whey, proteins, and stabilizers for yogurt, desserts, and ice cream mixes.
-
Pharmaceutical
Hygienic induction of active ingredients and excipients for syrups, suspensions, and liquid formulations.
-
Chemical
Reliable powder incorporation for adhesives, coatings, and process solutions requiring controlled dispersion.
-
Cosmetics & Personal Care
Smooth integration of powders into creams, lotions, shampoos, and gels for consistent texture.
-
Biotech & Life Sciences
Precise powder handling for pharmaceutical-grade and biologic liquid processes under hygienic conditions.
Key Features of the PM Powder Mixer
Vacuum-Assisted Powder Induction
Powder is tipped in a hopper, and a vacuum created by the self-priming liquid ring pump below pulls it into the liquid stream, creating a rapid and controlled powder draw while ensuring fast wetting and reduced air entrainment.
High-Shear Rotor–Stator Mixing System
Delivers consistent dispersion and agglomerate breakdown, improving batch repeatability and final product uniformity.
Wide Application and Process Flexibility
Handles a broad range of powders, flow rates and liquid viscosities across food, beverage, pharmaceutical and chemical processing applications.
Inline Mixing Configuration
Supports continuous processing and integration into existing production lines, reducing tank residence time and manual intervention.
Robust Hygienic Stainless Steel Construction
Manufactured from high-grade stainless steel to provide corrosion resistance, mechanical durability and long operational service life.
Hygienic, Sanitary Design
Engineered to meet modern hygienic processing standards, making the system suitable for demanding clean-production environments.
CIP-Compatible Design
Fully Clean-in-Place capable with optimized internal flow geometry, enabling efficient cleaning without disassembly and minimizing production downtime.
Optional extras:
Big bag adapters, CO2 connectors for the hopper, CIP lids, customized hopper shapes to assist powder induction and prevent bridging, adapters for automated feeding.
Benefits at a Glance
Consistent Product Quality
Ensures uniform powder wetting and high-shear dispersion, delivering repeatable, homogeneous results across every batch.
Improved Process Efficiency
Reduces mixing time by up to 90% compared to conventional tank mixing and manual powder addition methods.
Enhanced Product Stability
Minimizes agglomeration and sedimentation, supporting stable formulations with consistent viscosity, texture and particle distribution.
Improved Health and Safety
Waist-height vacuum powder induction eliminates the need for ladders and manual bag tipping into tanks, significantly reducing operator strain and workplace risk.
Easy to Operate
Designed for single-operator use with intuitive controls, enabling fast changeovers and simplified day-to-day production without specialist engineering skills.
Reduced Raw Material Costs
Uniform powder dispersion improves ingredient utilization, reducing product build-up on tank walls and minimizing raw material waste.
Lower Operating Costs
Minimizes rework, secondary processing and cleaning time, helping to reduce overall production and maintenance costs.
Scalable and Reliable Performance
Delivers consistent mixing performance across small batches and high-throughput industrial production environments.

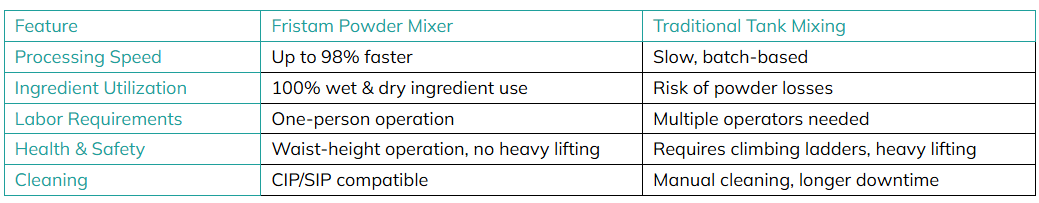

Fristam vs. Traditional Tank Mixing
Why choose Fristam’s inline powder mixing technology over conventional tank mixing?
With Fristam’s inline powder induction system, you can achieve higher efficiency, improve operator safety, and optimize batch repeatability.
Fristam vs. Other Powder Mixers – How Do We Compare?
Unlike competing powder mixers, Fristam’s technology stands out due to:
- Superior high shear blending for a perfectly homogenous mixture
- Ability to handle broad range of viscosities with ease
- Lower operating and purchase costs & faster ROI
- Industry-leading hygiene & safety compliance
- Modular, customizable designs
Technical Data
Fristam Global Standard Design Powder Mixer Technical Data
- 5 basic sizes
- Maximum viscosity: 2,500 cP
- Maximum powder intake: 10,000 kg/h
Size chart & model configurations:
Fristam Powder Mixer Type PM
| Size | Centrifugal Pump | Shear Pump / Rot. Homogeniser | Dimensions approx. LxWxH [mm] | Connections DN 11851 | Weight approx. [kg] | ||
|---|---|---|---|---|---|---|---|
| Type | Motor Power [kW] | Type | Motor Power [kW] | ||||
| PM 01 | FZ 15 | 2.2 – 4.0 | FSP 712 | 4.4 – 5.5 | 1,200 × 1,000 × 800 | DN 40 | 250 |
| PM 02 | FZ 17 | 4.0 – 5.5 | FSP 3522 | 4.0 – 11.0 | 1,700 × 1,000 × 800 | DN 50 | 300 |
| PM 03 | FZ 20 | 5.5 – 11.0 | FSP 3532 | 7.5 – 18.5 | 1,700 × 1,000 × 900 | DN 50 | 350 |
| PM 04 | FZ 22 | 11.0 – 15.0 | FSP 3542 | 15.0 – 30.0 | 2,050 × 1,000 × 1,050 | DN 65 | 450 |
| PM 05 | FZ 25 | 15.0 – 18.5 | FSP 3552 | 22.0 – 45.0 | 2,050 × 1,000 × 1,050 | DN 80 | 620 |
Powder intake chart:
Fristam Powder Mixer Type PM
| Size | Refined sugar / salt / protein powder [kg/h] | Skim milk powder [kg/h] | Thickening agents (e.g. pectin, guar gum) [kg/h] | Recommended minimum diameter of connected pipe [mm] |
|---|---|---|---|---|
| PM 01 | 500 | 450 | 100 – 200 | 40 |
| PM 02 | 1,800 | 1,600 | 300 – 500 | 50 |
| PM 03 | 3,500 | 3,200 | 600 – 1,200 | 50 – 65 |
| PM 04 | 5,000 | 4,500 | 1,200 – 2,000 | 65 – 80 |
| PM 05 | 10,000 | 9,000 | 1,500 – 3,000 | 100 – 125 |
Fristam PM Powder Mixer — Summary
Mixing & Product Quality
- Hygienic powder induction and dispersion for controlled, lump-free incorporation into liquids
- Uniform wetting ensures consistent batch quality across food, dairy, pharmaceutical, cosmetic, chemical, and biotech processes
- Superior to traditional tank mixing and conventional mixers, eliminating dead zones, agglomeration, and inconsistent dispersion
Efficiency & Cost Reduction
- Shorter mixing times compared to tank-based powder addition
- Reduced raw material waste through complete ingredient utilisation and residue-free processing
- Lower rework and secondary processing requirements
Health, Safety & Operation
- Waist-height powder addition improves operator safety by removing the need for ladders and manual bag tipping
- Designed for single-operator use with no specialized engineering skills required
- Simplifies day-to-day operation and training
Hygiene & Cleaning
- Fully CIP-capable for efficient, hands-free cleaning without disassembly
- Hygienic design suitable for sensitive food, dairy, and pharmaceutical environments
Design & Integration
- Robust stainless-steel construction for long-term reliability
- Scalable and easily integrated into hygienic production lines
